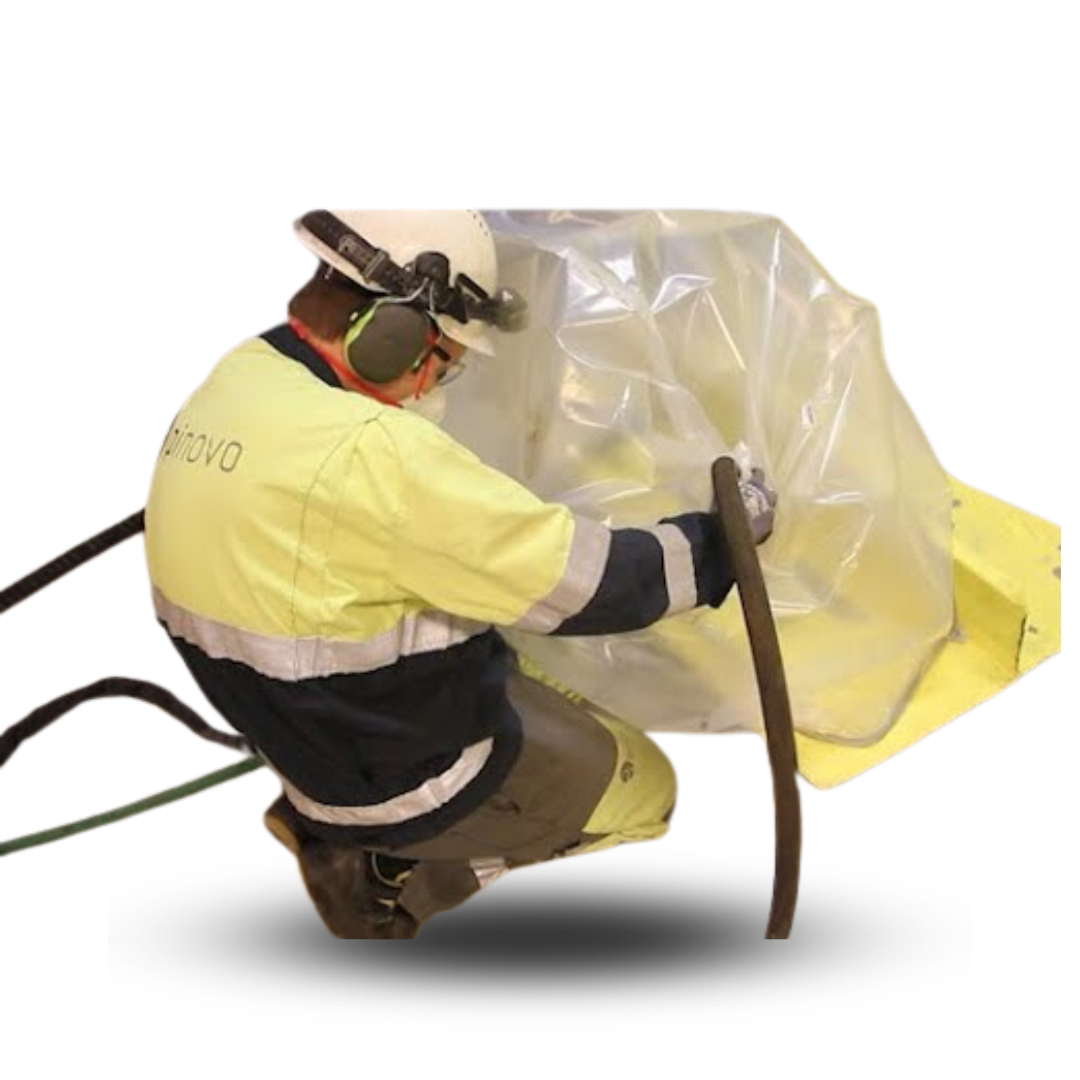

PiHab™
Das PiHab™ ist ein vielseitiges und transparentes Strahlkabine, das für komplexe Rohr- und Trägersysteme entwickelt wurde. Es ist kompatibel mit den Pinovo® Kreislauf-Globula-Strahlensystemen PiSys™ 100 und PiSys™ 1000, und sorgt für eine effiziente, staubfreie Oberflächenvorbereitung mit minimalem Reinigungsaufwand. Das PiHab™ ermöglicht bis zu 25 Wiederverwendungen des Pinovo® Strahlmittels und reduziert den Verbrauch von abrasiven Medien um bis zu 90%.
Zusätzliche Informationen
| Enclosure size | Approx. 230 x 190 cm (varies by version) |
|---|---|
| Nozzle type | 6.4 mm Venturi nozzle |
| Compressed air usage | 6 Nm³/min – 1.5 Nm³/min (blasting); 4.5 Nm³/min (vacuum recovery) |
| Grit consumption | 15 kg/m² (varies by operating and recycling conditions) |
| Blast pressure | < 5 bar |
| Blast width | Depends on stand-off distance |
| Capacity | Varies by surface and operating conditions |
| Material | Pinovo® Blasting Grit |
| Grit size | F 12 and smaller |
| Primary preparation | SA 2 ½ (SSPC-SP-10 / NACE No. 2); up to SA 3 (SSPC-SP-5 / NACE No. 1) |
| Secondary preparation | P SA 2 ½; up to P SA 3 |
| Anchor Profile | Up to Rz 120 µm (varies by pressure and grit size) |
| Noise Level | ~92 dB(A), varies by blast pressure and environment |
| Vibration | Low vibration for operator comfort |
| PPE Requirements | Minimal protective equipment needed |
| Conformity | II 2G IIA T4 |
| Environmental impact | No flying grit emissions; closed-loop waste management |
