PiCo Pipe™

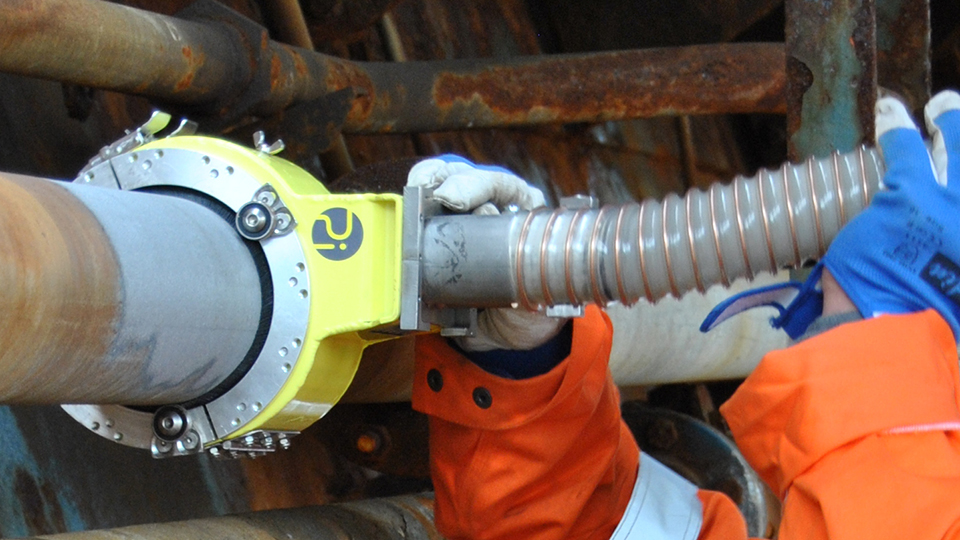

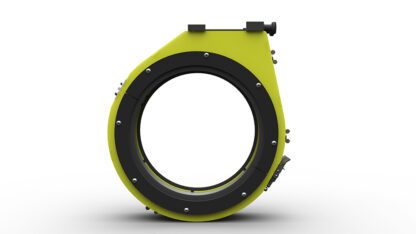

The PiCo Pipe™ is a handheld, closed-loop vacuum blasting tool designed for dust-free abrasive blasting of pipes. It is available in various sizes to accommodate pipe diameters ranging from ½ inch to 8 inches.
Additional information
| Dimensions | Varies by model; for example, the 1" model measures approximately 150 mm (L) x 110 mm (W) x 195 mm (H) |
|---|---|
| Weight | Approximately 1.0 kg (excluding hoses and adapter) |
| Nozzle type | 6.4 mm Venturi nozzle. |
| Air pressure requirements | Minimum 8 bar, 10 m³/h, dry air. |
| Noise level | LpA ≤ 84 dB at 1 m distance. |
| Vibration | Low vibration levels. |
| ATEX Compliance | II 2G IIA T4. |
| Cleaning capacity | Up to 2.5 m²/hour, depending on surface condition and coating. |
| Surface roughness | Up to Rz 120 µm, depending on blast pressure, grit size, and surface. |
| Surface cleanliness: | Achieves up to SA 3 / SSPC-SP-5 / NACE No. 1 |
| Dust emission | Zero emissions into the environment due to the closed-loop system. |
| Waste management | Integrated system minimizes waste production. |
| Personal protective equipment (PPE) | Minimal requirements due to the controlled environment |
